To add graphic overlays to your production in TVU Producer:

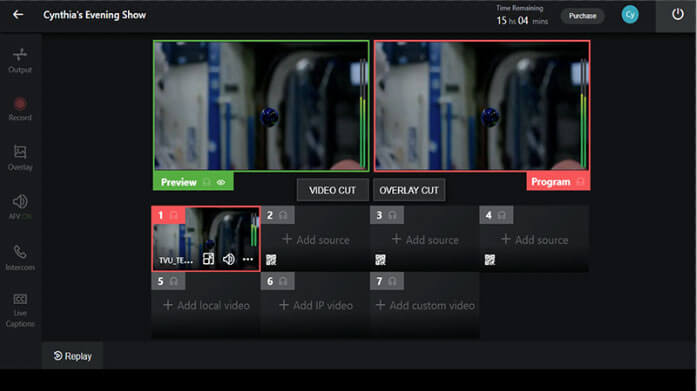

1. Click the Overlay icon in the left navigation menu and click the Native tab.
2. If you prefer a logo that does not appear in the Native file list, click the Add button .
3. Locate your preferred logo file from your local file browser window, supported formats are JPG, GIF, and PNG (up to 1920×1080 ppi). Select the file and press Open . The image is added to the list and Preview window.
4. Press and hold the overlay to move the position. Then, click and drag the overlay endpoint to resize the image.
5. You may also add additional graphic overlays from the Native file list to your production.
6. Adjust the size and position of your additional overlay.
Note that your overlays that appear in the Preview window display in the file list outlined in Green (selected).
7. To move your overlays from the Preview window into the Program window, click the Overlay Cut button .
8. To remove a graphic overlay, click the graphic in the file list to deselect it. Then, click the Overlay Cut button to refresh the Program window.
